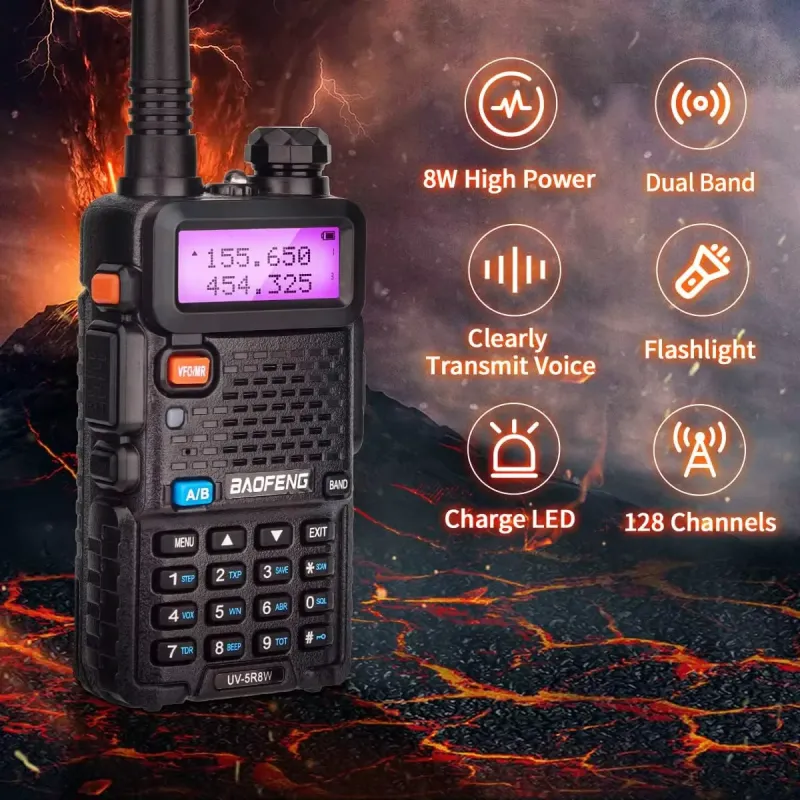

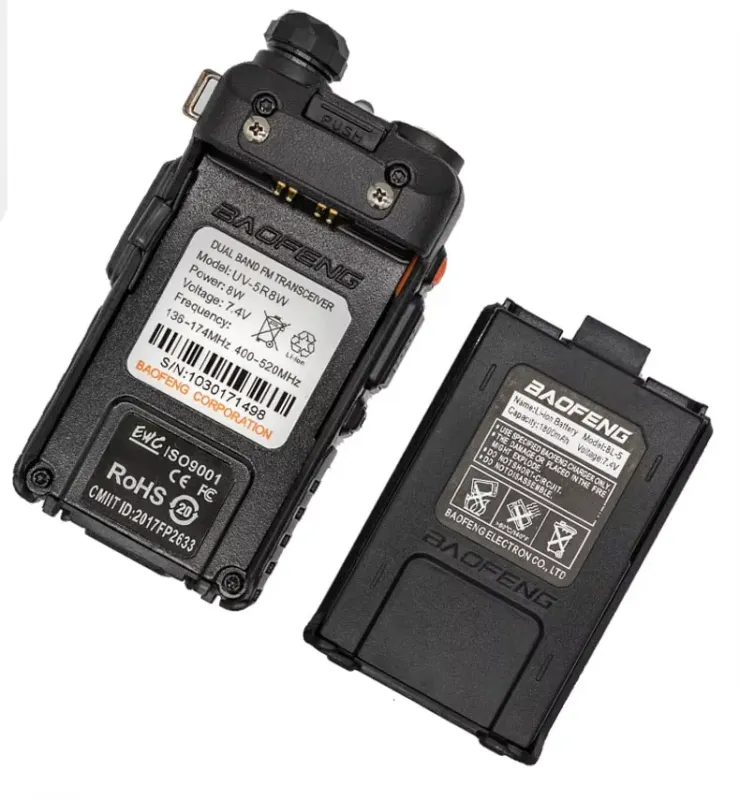

BaoFeng UV-5R8W Tri-Power Walkie Talkie High Power Dual Band Long Range 128 CH Portable Handheld Ham Two Way Radio

New

Model

Baofeng UV-5R 8W

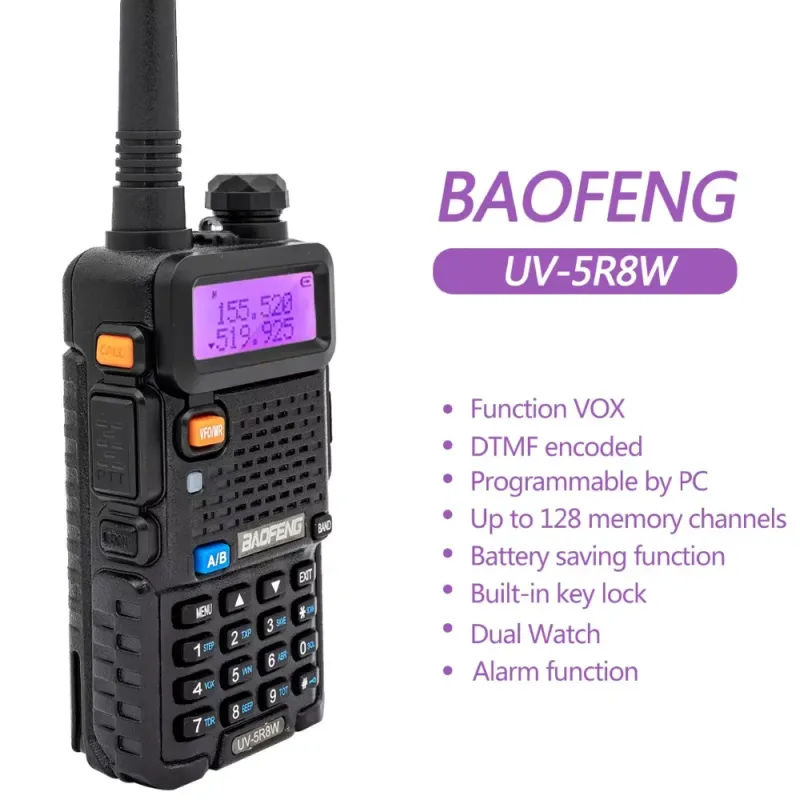

Dual band / dual display / dual standby

A/B band independent operation(UV UU VV)

VFO & Memory channels scan

Emergency Alarm

Time-out Timer (TOT)

0~9 grades VOX selectable

PTT & ANI ID

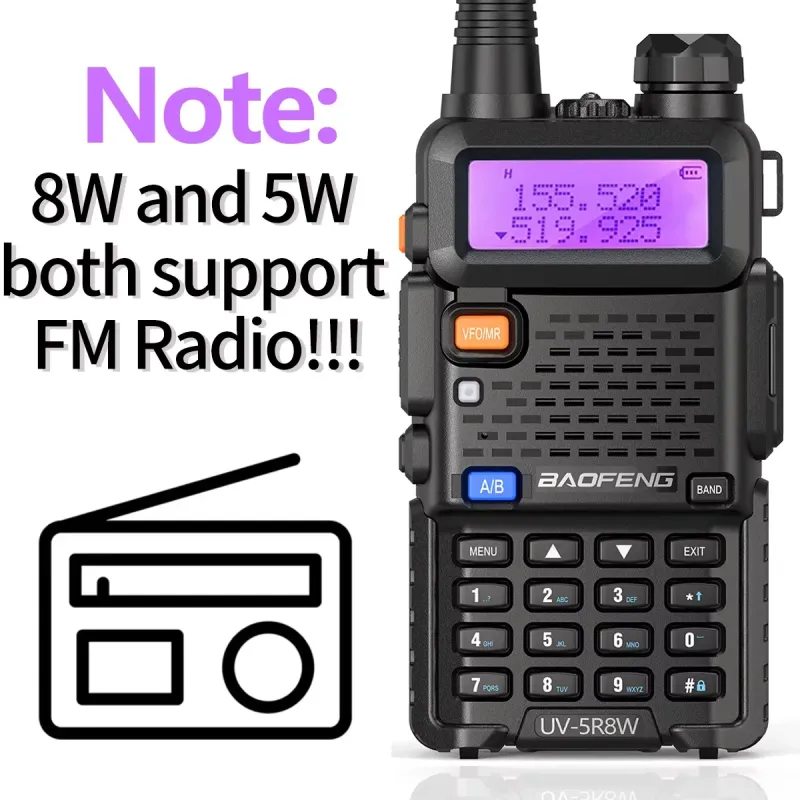

FM radio and 25 stations storage

Voice companding

50 CTCSS/104 DCS

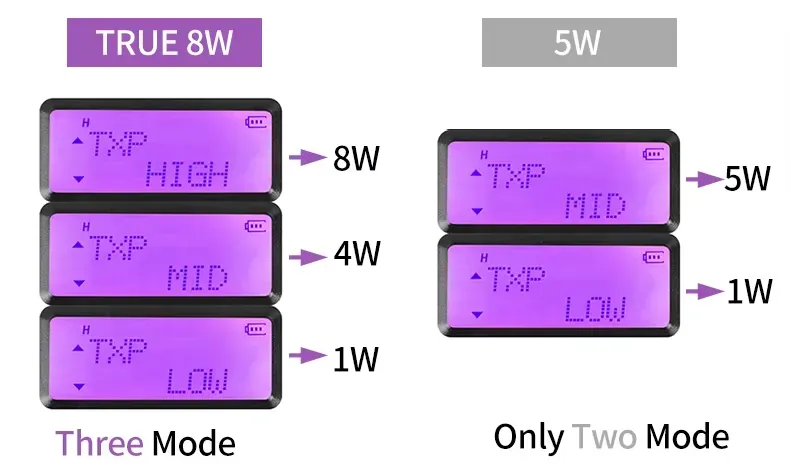

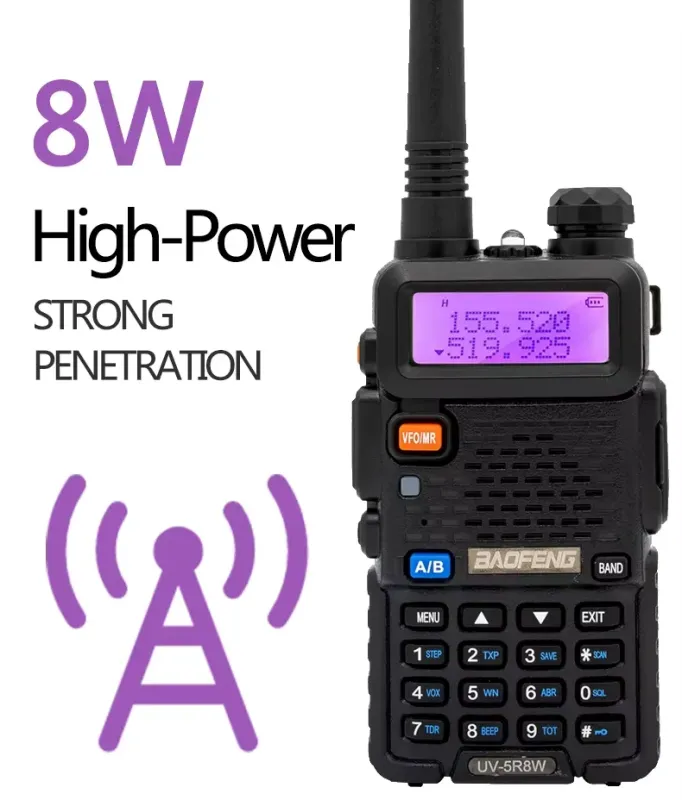

High/Low TX power selectable

Busy channel lock-out(BCLO)

DTMF function

OFF SET function

Rated Voltage

7.4V DC±10%

Battery capacity

1800mAh

Working temperature

-20°C~+50°C

Antenna Impedance

50 OHM

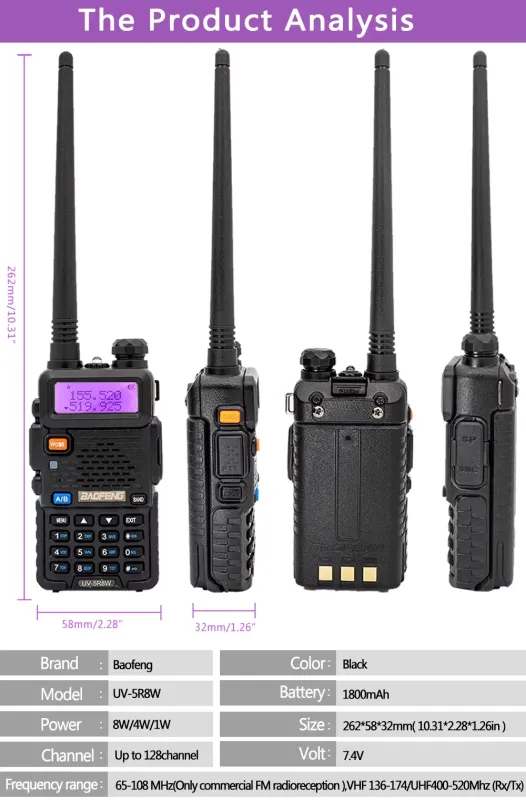

Dimension(LXWXH)

2.28"W x 1.26"D x 5.9"T( Without Antenna)

Frequency stability

±2.5ppm

Carrier wave tolerance

5ppm

Modulation

16kØF3E / 11kØF3E

Max frequency deviation

< 5kHz(Wide)
< 2.5kHz(Narrow)

Modulation character

6 dB per fold frequency patch

CTCSS / DCS

0.5±0.1kHz(Wide)
0.3±0.1kHz(Narrow)

Sensitivity

< 0.16µV(12dB SINAD)

Silent sensitivity

< 0.2µV
